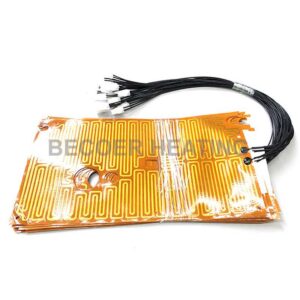

PCB Electric Etched Foil Kapton Heating Pad Description
Condition:New
Type:Electric Heater
Power Source:Electric
Place of Origin:Guangdong, China
Brand Name:Becoer or Customized
Dimension(L*W*H):customized
Weight:0.01 KG
Voltage:1.5-220V
Warranty:1 Year
Working Temperature Range:-30-180 ºC
Material:Kapton film+etched metal foil
Thickness:0.18-0.226mm
Back adhesive:3M 467 / 468 or customized
Power deviation:±5%
Supply Ability:100000 pcs per month
Packaging Details:PE inner bag+Carton
Certificates:ISO9001,RoHS,REACH
Applicable Industries:Manufacturing Plant,Construction works , Energy & Mining, Food & Beverage Shops, Other
|
Item
|
Kapton Heating Pad
|
|
Voltage Range
|
1.5v~400v
|
|
Power Density Range
|
0.03w/cm2~1.5w/cm2
|
|
Heater Size
|
3mm~500mm
|
|
Insulation Material
|
Kapton Film
|
|
Heating Material
|
Etched metal foil
|
|
Thickness
|
0.15mm~0.3mm
|
|
Temperature range
|
-30℃–180℃
|
|
Cable conductor
|
Silicone insulated leads
|
What is PCB Electric Etched Foil Kapton Heating Pad?
A PCB (Printed Circuit Board) Electric Etched Foil Kapton Heating Pad is a specialized type of heating element designed for use in electronic and electrical applications. It is constructed by integrating a Kapton film with an etched foil or printed circuit of conductive material, usually copper, that forms a heating pattern. This type of heating pad is designed to be applied directly to a circuit board or other surfaces in electronic devices where controlled heating is required.
Here are some key features and components of a PCB Electric Etched Foil Kapton Heating Pad:
Kapton Film: Kapton is a polyimide film known for its excellent thermal stability, electrical insulation properties, and resistance to chemicals and radiation. It serves as the base material for the heating pad.
Etched Foil or Printed Circuit: This is the conductive element responsible for generating heat when an electrical current passes through it. The foil is often precisely etched or printed onto the Kapton film to create a specific heating pattern, ensuring uniform heat distribution.
Temperature Control: Depending on the application, PCB Kapton heating pads may include integrated temperature sensors and control circuits to regulate the temperature accurately. This enables users to maintain a specific temperature range.
Mounting Options: These heating pads can come with adhesive backing for easy attachment to surfaces, including circuit boards or other substrates. The adhesive ensures secure placement.
Safety Features: To prevent overheating and potential damage, many PCB Kapton heating pads include built-in safety mechanisms, such as over-temperature protection or thermal fuses.
Configuration of the Kapton Heating Pad
Kapton Heating Pad in different shapes
Kapton Heating Pad Application
About Us
Becoer Group, we take pride in being a comprehensive corporation that specializes in delivering top-tier solutions in the fields of Packaging, Machinery, and Electric Heating. With our corporate offices strategically located in Hefei, Shanghai, and Shenzhen, we have firmly established ourselves as a dynamic and innovative force in the industry.
One of our core strengths lies in our Heating Department, which is located in the vibrant city – Shenzhen. We are proud to hold prestigious certifications such as ISO 9001 and SGS, underscoring our commitment to quality, excellence, and adherence to international standards.Our main products are Kapton Heating Pad,Polyester Heating Pad,Silicone Rubber Heating Pad,Animal Heating Pad and Seedling Heating Pad.
